Scenarios

Scenarios are the foundation of HumaLab's adaptive validation system. They define parameterized configurations using probability distributions, enabling systematic exploration of your AI system's behavior.

Creating a Scenario

import humalab as hl

scenario = hl.scenarios.Scenario()
scenario.init(scenario={
    "gravity": "${uniform: -9.8, -8.8}",
    "friction": "${gaussian: 0.5, 0.1}",
    "wind_speed": "${truncated_gaussian: 0, 2, 0, 10}"
})

Scenario GUI

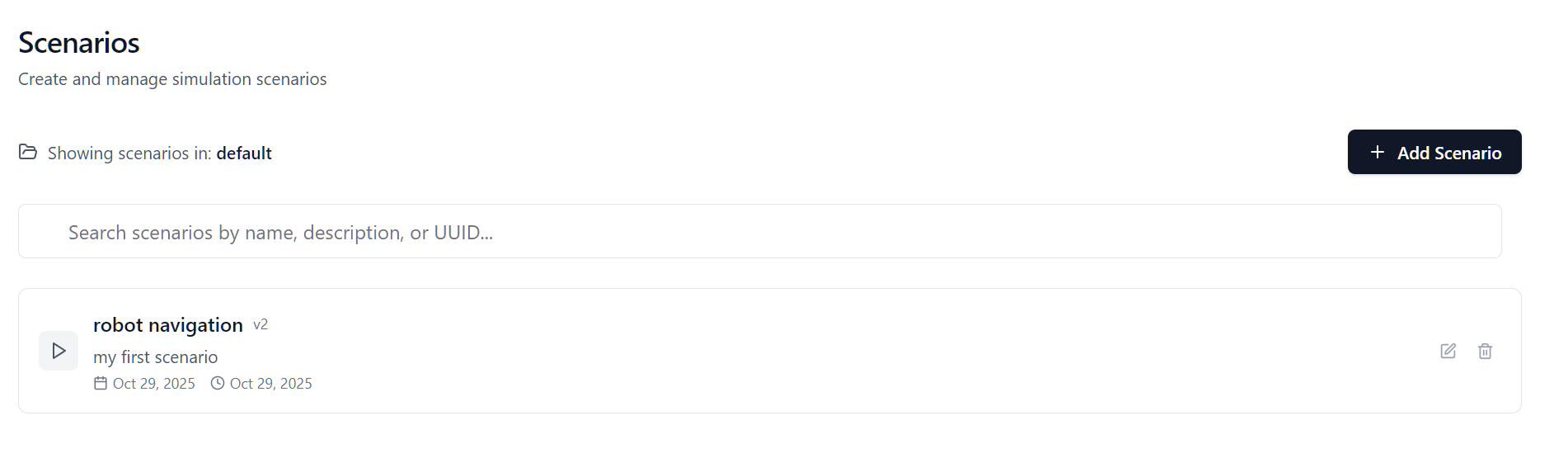

From the Scenario Main page, you can add new scenarios, or view the existing scenarios Click "Add Scenario" icon

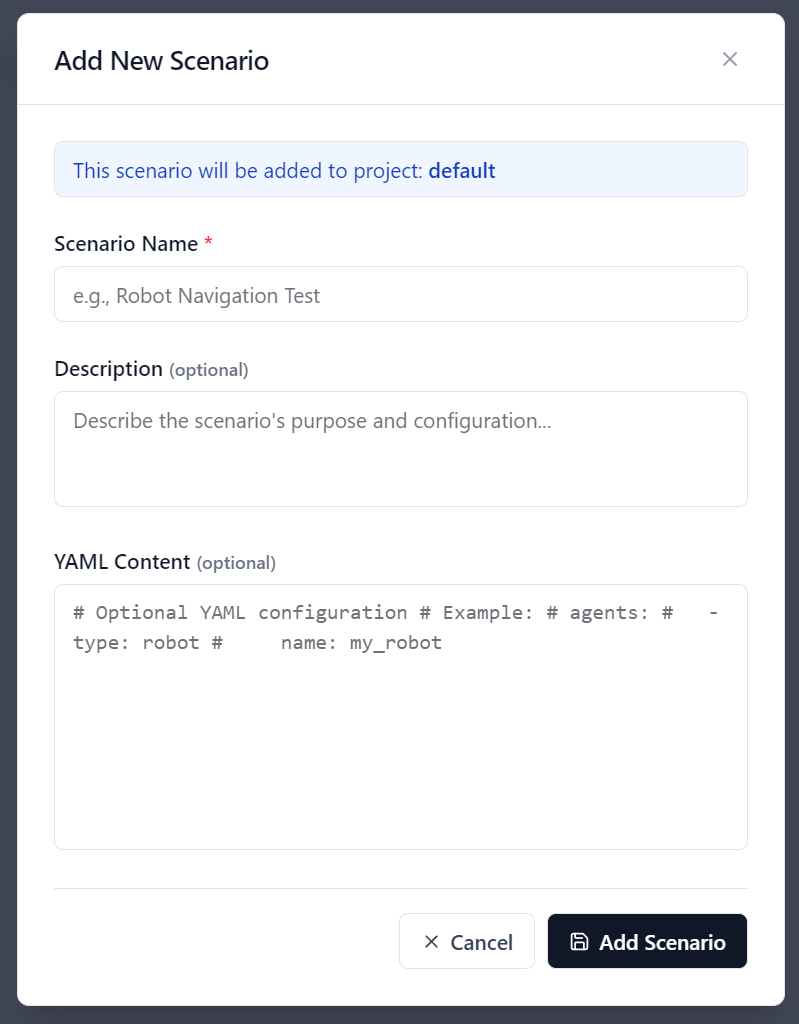

Using the GUI to create a Scenario

Add the Scenario name, and other optional details to create a new scenario. If you have the YAML configuration ready, you can also add it here.

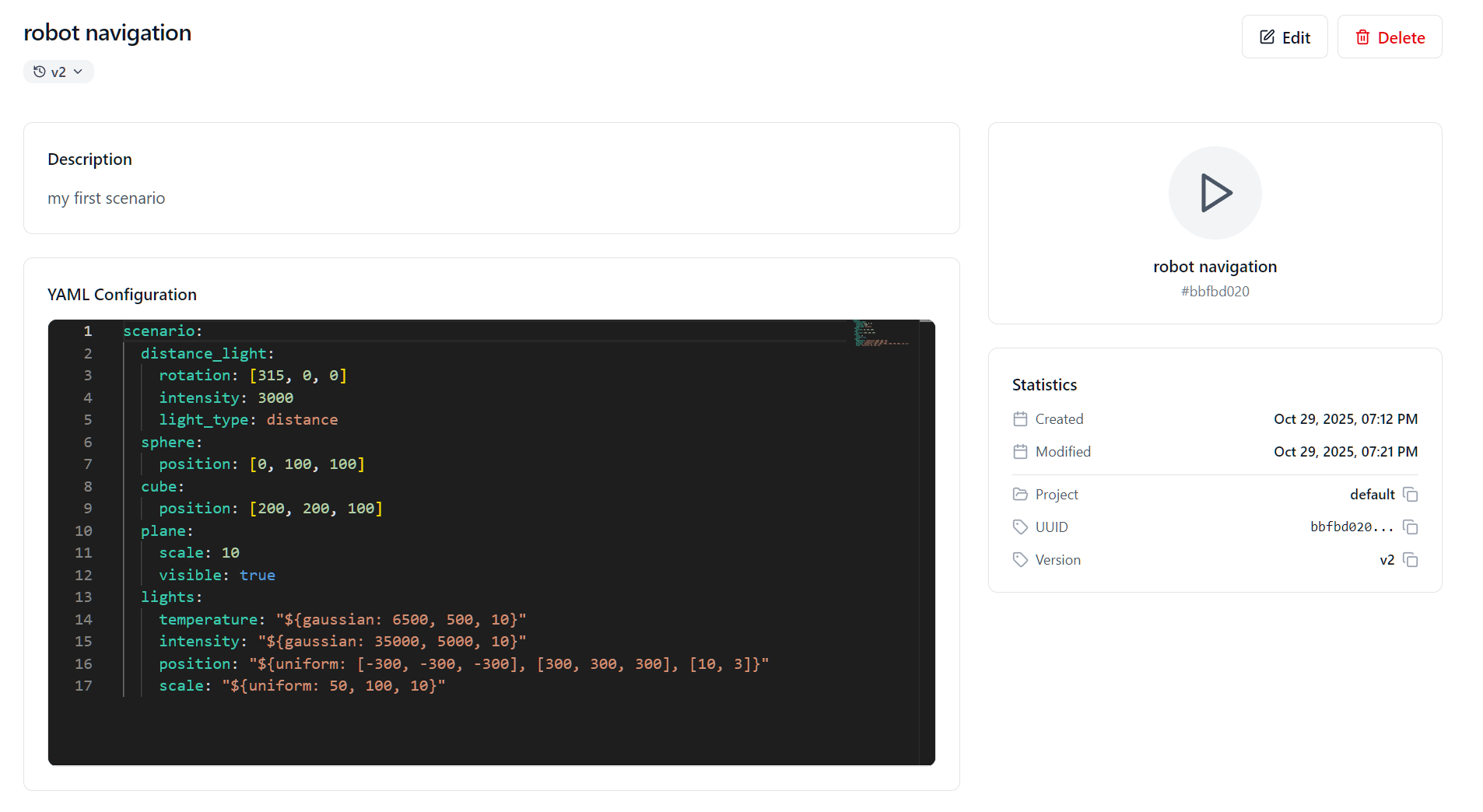

Using the GUI add or edit YAML Configuration

After creating a new scenario, or selected an exisiting scenario from the main page, you can edit the YAML configuration by clicking "Edit".

Supported Distributions

HumaLab supports a variety of probability distributions for scenario parameters:

Scalar Distributions (0D)

Uniform Distribution

Samples uniformly between min and max values.

"${uniform: min, max}"
# Example: "${uniform: 0, 10}"

Gaussian (Normal) Distribution

Samples from a normal distribution with specified mean and standard deviation.

"${gaussian: mean, std}"
# Example: "${gaussian: 5.0, 1.0}"

Truncated Gaussian

Samples from a normal distribution bounded by min and max values.

"${truncated_gaussian: mean, std, min, max}"
# Example: "${truncated_gaussian: 5.0, 1.0, 0, 10}"

Log-Uniform Distribution

Samples uniformly in log space, useful for parameters that span multiple orders of magnitude.

"${log_uniform: min, max}"
# Example: "${log_uniform: 0.001, 1.0}"

Bernoulli Distribution

Binary distribution returning 0 or 1.

"${bernoulli: p}"
# Example: "${bernoulli: 0.5}"

Categorical Distribution

Samples from a list of choices (numbers or strings) with optional weights.

"${categorical: choices, weights}"
# Example: "${categorical: ['red', 'green', 'blue'], [0.5, 0.3, 0.2]}"
# Example: "${categorical: [10, 20, 30], [0.5, 0.3, 0.2]}"
# Example: "${categorical: ['A', 'B', 'C']}"  # Uniform if weights not provided

Discrete Distribution

Samples integer values uniformly from a range [low, high).

"${discrete: low, high, endpoint}"
# Example: "${discrete: 1, 10}"  # Samples from [1, 10) - excludes 10
# Example: "${discrete: 1, 10, true}"  # Samples from [1, 10] - includes 10
# Example: "${discrete: 0, 100, false}"  # Samples from [0, 100) - excludes 100

Multi-Dimensional Distributions

HumaLab supports 1D, 2D, and 3D versions of several distributions. Important: 1D distributions use the same scalar parameters as 0D but return a 1-element array. 2D and 3D use array parameters.

# 1D Uniform (same parameters as 0D, returns array of size 1)
"position_x": "${uniform_1d: -10, 10}"

# 1D Gaussian (same parameters as 0D, returns array of size 1)
"velocity": "${gaussian_1d: 5.0, 1.0}"

# 2D Gaussian (array parameters for 2D output)
"coordinates": "${gaussian_2d: [0, 0], [1, 1]}"

# 3D Uniform (array parameters for 3D output)
"position_3d": "${uniform_3d: [-5, -5, 0], [5, 5, 10]}"

Parameter Rules:

• 0D (scalar): uniform(min, max) → returns single value
• 1D: uniform_1d(min, max) → returns [value] (1-element array, same scalar params)
• 2D: uniform_2d([min, min], [max, max]) → returns [value1, value2] (array params)
• 3D: uniform_3d([min, min, min], [max, max, max]) → returns [value1, value2, value3] (array params)

Scenario Configuration

YAML String Format

You can define scenarios using YAML strings:

scenario_yaml = """
environment:
  gravity: ${uniform: -9.8, -8.8}
  temperature: ${gaussian: 20, 0.5}

robot:
  initial_position: ${uniform_2d: [-1, -1], [1, 1]}
  mass: ${log_uniform: 0.5, 2.0}

task:
  difficulty: ${categorical: ['easy', 'medium', 'hard'], [0.5, 0.3, 0.2]}
"""

scenario.init(scenario=scenario_yaml)

Dictionary Format

Alternatively, use Python dictionaries:

scenario_dict = {
    "environment": {
        "gravity": "${uniform: -9.8, -8.8}",
        "temperature": "${gaussian: 20, 5}"
    },
    "robot": {
        "initial_position": "${uniform_2d: [-1, -1], [1, 1]}",
        "mass": "${log_uniform: 0.5, 2.0}"
    }
}

scenario.init(scenario=scenario_dict)

Resolving Scenarios

When you create an episode, the scenario is resolved by sampling from all distributions:

# The scenario template
print(scenario.yaml)

# Create a run and episode
run = hl.Run(scenario=scenario, project="test")
episode = run.create_episode()

# Get the resolved values
resolved_scenario, episode_vals = scenario.resolve()
print(resolved_scenario)  # Concrete values sampled from distributions

Using Scenarios with init()

You can pass a Scenario instance directly to init() for more control over scenario initialization:

import humalab as hl
from humalab.scenarios import Scenario

# Create and initialize a scenario
scenario = Scenario()
scenario.init(
    scenario={
        "gravity": "${uniform: -9.8, -8.8}",
        "friction": "${gaussian: 0.5, 0.1}",
        "wind_speed": "${truncated_gaussian: 0, 2, 0, 10}"
    },
    seed=42  # Set seed for reproducibility
)

# Use the scenario instance in init()
with hl.init(
    project="physics_sim",
    name="controlled_test",
    scenario=scenario,  # Pass Scenario instance
    api_key="your_api_key"
) as run:
    for i in range(10):
        with run.create_episode() as episode:
            print(f"Gravity: {episode.gravity}")
            print(f"Friction: {episode.friction}")
            # Run your tests...

Alternative: Pass scenario dict directly to init():

with hl.init(
    project="physics_sim",
    name="inline_test",
    scenario={
        "gravity": "${uniform: -9.8, -8.8}",
        "friction": "${gaussian: 0.5, 0.1}"
    },
    seed=42,  # Seed can be passed here too
    api_key="your_api_key"
) as run:
    # Scenario is automatically initialized
    pass

Scenario IDs and Versions

You can specify scenario IDs and versions for tracking:

scenario.init(
    scenario=scenario_dict,
    scenario_id="my_scenario:1",  # Format: "name:version"
    seed=42  # Optional seed for reproducibility
)

Accessing Scenario Data

Template Access

# Get the scenario template (with distribution placeholders)
template = scenario.template
yaml_str = scenario.yaml

# Get scenario metadata
scenario_id = scenario.scenario_id  # The scenario ID
seed = scenario.seed                # The random seed (if set)

Example:

scenario = Scenario()
scenario.init(
    scenario={"param": "${uniform: 0, 10}"},
    scenario_id="my_scenario:1",
    seed=42
)

print(f"ID: {scenario.scenario_id}")    # Output: my_scenario
print(f"Seed: {scenario.seed}")          # Output: 42
print(f"YAML:\n{scenario.yaml}")

Episode-Specific Values

# Each episode has its own sampled values
episode = run.create_episode()
# Episode values are automatically tracked and uploaded

Best Practices

1. Use Appropriate Distributions: Choose distributions that match your parameter's characteristics

   • Use uniform for bounded parameters without a preferred value
   • Use gaussian for parameters with a natural center value
   • Use log_uniform for parameters spanning multiple orders of magnitude

2. Set Reasonable Bounds: Ensure distribution parameters create valid values for your use case

3. Version Your Scenarios: Use scenario IDs and versions to track changes over time

4. Test Resolution: Verify that scenario resolution produces valid configurations:

   for i in range(10):
       resolved, vals = scenario.resolve()
       print(f"Sample {i}: {resolved}")

5. Document Your Distributions: Include comments explaining why specific distributions and parameters were chosen
